Description

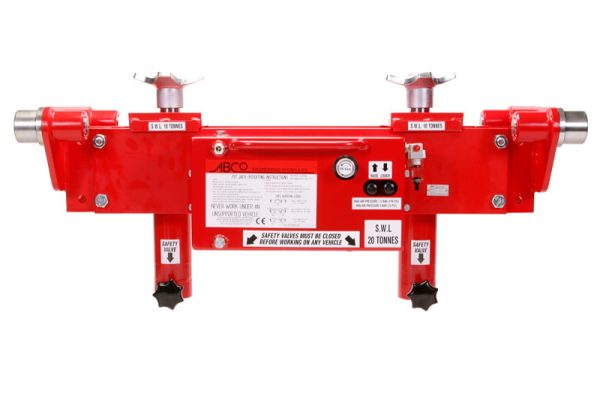

Built using high quality steels, the ABCo Pit Jack is operated via an air over hydraulic pump and capable of providing rapid lift.

We manufacture a pit jack to suit your particular needs by selecting the correct frame to fit your pit width. The position of the air intake is by standard on the right hand side of the jack, but there is an optional extra to fit this on to the left hand side to suit your air supply.

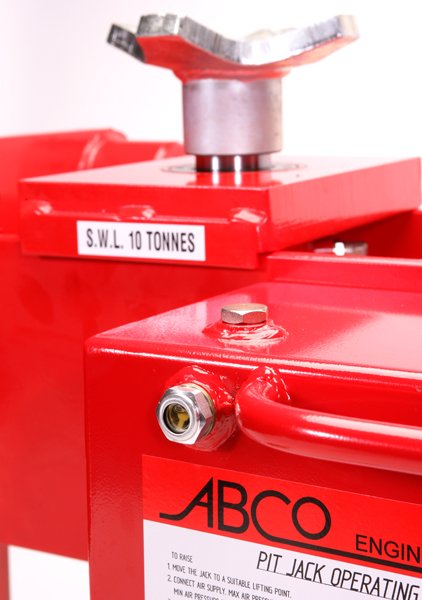

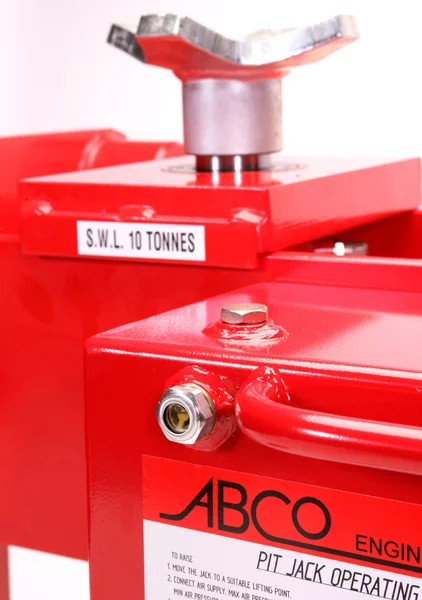

The Pit Jack rams are each fitted with an isolation valve to allow independent operation and a hose burst valve for added safety. A full set of adaptors is included with a carrying plate fitted to the rear of the jack as an optional extra.

Also included is a coiled air line to supply air to the pump.

Please look below for an exploded view of the product

Video Player

00:01

00:02

Pit Jack Extended 5 Year Limited Warranty

Year 1

Full parts cover

Any part failing from faulty materials or workmanship within the first 12 months from date of purchase will be replaced/repaired free of charge. Accidental and water damage of any component will not be covered by the warranty and will be fully chargeable (all repairs will be quoted before being carried out) e.g. damaged cylinder rods, internal water damage, damaged isolation/release valves etc.

Year 2-5

Limited parts cover

Any part failing from faulty materials or workmanship, between month 13 to 60 from date of purchase will be replaced/repaired free of charge. Excluded from the above statement are consumable wearing parts: seals (cylinder, pump and valve), bearings, lifting adaptors, internal air pump components, air pipes, hydraulic hoses, any part suffering from accidental or water damage.

In order to ensure a long service life and continued warranty support on your jack, it must be kept in good working order and all operating parameters must be adhered to e.g. water trap intact and drained, correct operating air pressure and the jack kept clean, etc.

Details of weekly maintenance are included in the operating manual. Failure to comply with the operating parameters and weekly maintenance instruction may invalidate your warranty.

Please see our Terms & Conditions for further information.

Click here to download Pit Jack Survey Form - please send completed form by email to: sales@abcohydraulics.com

Technical Information

Specifications

ABCo manufactured high-quality cylinders on all models
Maximum lift height of 300mm

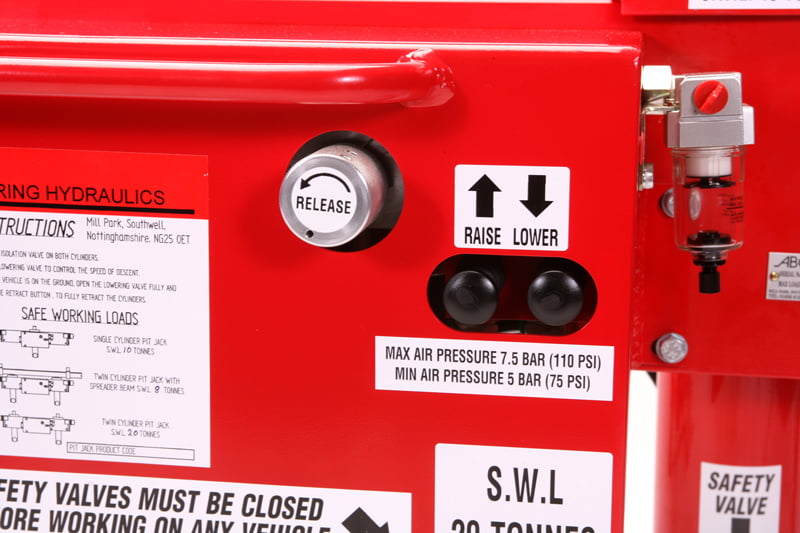

Single unit tank incorporates: air motor, pneumatic up and down buttons and release valve
Fitted with water trap/air filter
Adjustable zinc plated rollers with needle roller bearings*
Frame sizes available to cover 750mm to 1375mm pit widths although fixed frames can be manufactured to suit widths outside this range

*tapered rollers can be provided if required
